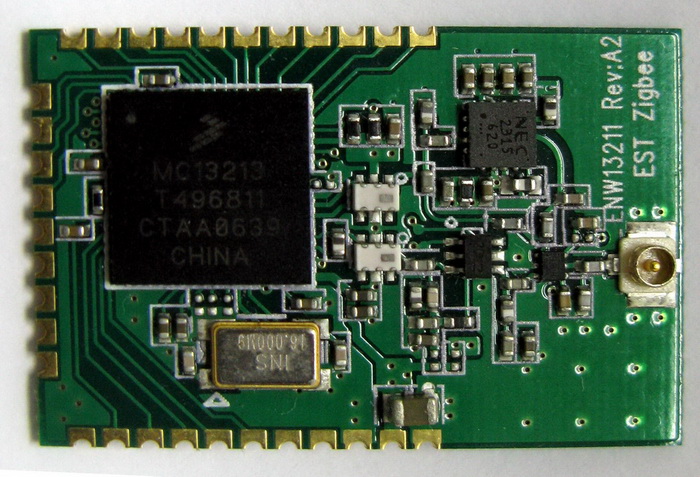

EST High Power RF Module

首頁 模組 EST High Power RF Module

Features

Power-n-Go design (No Config Required)
Establish network automatically



Support 26 GPIO pads shared with:
Two UART ports
One I2C port
8 pins with A/D converter
8 pins with Key Interrupt
5 pins of Timer / PWM



Support long range communication

Support Star & Peer network (up to 255 nodes)

Upgrade firmware through the lead pads

All the system parameters can be configured through the UART

Easy to mount form factor

Specifications

Operating Frequency2.4GHz (Zigbee RF)
Number of Channels16 channels available
RF data rate250K bps
Operating rangeUp to 500m
Operating Temperature-40°C to +85°C
RF Tx powerUp to +20 dBm
RF Rx sensitivity-85 dBm
VDD range2.7 to 3.3V
Power consumption120mA @ Run mode
Dimension 30mm x 20mm
